• Model NO.：CS,SS FITTINGS & FLANGES
• Manufacturing Way：Forging
• Flange Type：Welding Neck Flange,Blind Flange,Slip on Flange
• Flange Standard：DIN,En,as,Bs,ANSI B16.5
• Fittings Standard：ANSI B16.9
• Flange Material：Forged Carbon Steel,Stainless Steel,Alloy Steel
• Fittings Material：Carbon Steel,Stainless Steel Alloy Steel
• Fittings Type：Seamless or Welded
• Flanged End：Raised Face and Flat Face
• Fittings End：Bw,Sw,NPT
• Transport Package：Plywood Case,Plywood Pallet
• Specification：ce
• Trademark：FRONT
• Origin：China
• HS Code：73079900
• Production Capacity：500PCS,Month

Basic Info.

Model NO. CS/SS FITTINGS & FLANGES Manufacturing Way Forging Flange Type Welding Neck Flange,Blind Flange,Slip on Flange Flange Standard DIN,En,as,Bs,ANSI B16.5 Fittings Standard ANSI B16.9 Flange Material Forged Carbon Steel,Stainless Steel,Alloy Steel Fittings Material Carbon Steel,Stainless Steel Alloy Steel Fittings Type Seamless or Welded Flanged End Raised Face and Flat Face Fittings End Bw,Sw,NPT Transport Package Plywood Case/Plywood Pallet Specification ce Trademark FRONT Origin China HS Code 73079900 Production Capacity 500PCS/Month

Product Description

All kinds of Flanges:

1) Size: 1/2" to 60" or larger
2) Pressure: 150LB ~ 2500LB
3) Type: Slip-On, Welding Neck, Blind, Lap-joint, Spectacle, Socket-welding, Threaded, Ring Joint, Oriface, Tongue & Groove etc.
4) Material: A105, F52, F60, F65, F70, F11, F22, F51, F304, F304L, F316, F316L etc...
5) Standard: ANSI B16.5, API605, MSS SP 44, API6A, JIS B2220, DIN2573/2576/2544/2545, DIN2527, DIN2631/2632//2633/2634/2635, UNI2276/2277/2278/2280/2281/2282/2283/2284, UNI2253, UNI2229, UNI6100-67, AS4087

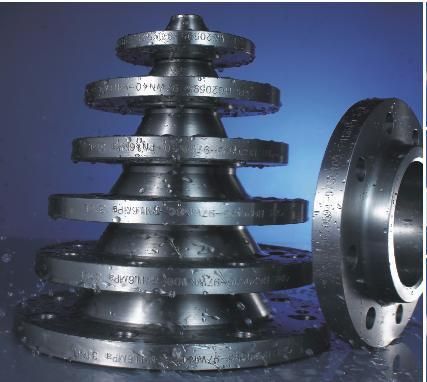

Forged Steel Flanges

Type: Slip-On, Welding Neck, Blind, Socket Welding, Threaded, Lap Joint and Plate etc.

Pressure Ratings: Class 150, 300, 600, 900, 1500 and 2500

Pressure Ratings: PN 6, PN 10, PN16, PN25, PN40 and PN64
JIS 5K, 10K, 16K and 20K

Materials: Carbon steel, Stainless steel and Alloy steel etc.

Standards: ANSI, API, BS, DIN, UNI, JIS and MSS SP etc.

Size: 1/2" ~ 64"(DN15 mm ~ 1600 mm)

We can also manufacture non-standard of steel flanges as per the drawings provided by customers.




All kinds of  Pipe Fittings:

1) Size: 1/2" to 60" or larger
2) Type: Butt-weld Seamless & Welded Fittings in shape of Long Radius/Short Radius Elbows (45 deg elbow, 90deg elbow, 180deg elbow), Straight & Reducing Tee, Crosses, Lap Joint Stub end, Caps, Concentric Reducers, Eccentric Reducers etc.
Forged Screwed and Socket-Weld Fittings in shape of Elbow, Tee, Union, Cross, Coupling, Half Coupling, Cap, Bush, Plug, Swage Nipple, Welding Boss, Hexagon Nipple, Weldolets, Sockolets, Threadolets, Nipolets etc.
3) Material: Carbon steel, stainless steel, alloy steel etc.
4) Standard: ANSI B16.9, ANSI B16.11, MSS SP 97

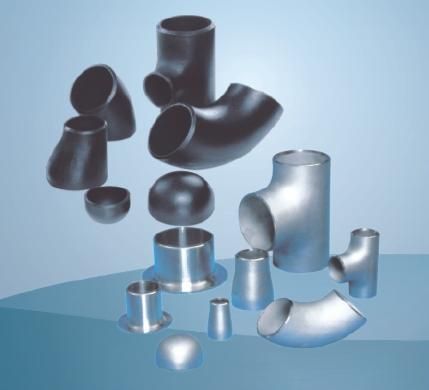

Buttweld Fittings

Type: Elbow 90° LR/SR, 180° LR/SR, Elbow 45° LR, Equal Tee, Reducing Tee
Type: Concentric and Eccentric Reducers, Caps Plugs Forged Fittings etc.
Wall Thickness: Schedule 5 through XXH
Materials: Carbon steel, Stainless steel and Alloy steel etc.
Standards: ANSI, DIN and JIS etc.
Size: 1/2" ~ 48" (DN15 mm ~ 1200 mm)

 Stainless Steel Screwed Fittings

Type: Elbow 90°, Tee, Reducing Tee, Cross, Street Elbow 90°, Elbow 45°, Union,
Plug, Bushing, Nipple, Cap, Socket, Coupling etc.
Pressure Rating: 150 LBS
Materials: CF8M (Type 316), CF8 (Type 304)
Threaded: NPT, BSP, DIN2999 etc.
Size: 1/8" ~ 4"
