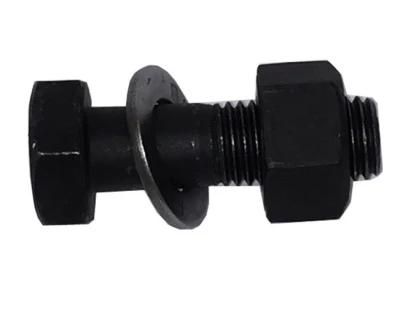

DIN980V All Metal Lock Nut

NINGBO TRANSHOW FASTENER CO., LTD.
  • Material：Carbon Steel
  • Type：Hexagon Head
  • Connection：Common Bolt
  • Head Style：Hexagonal
  • Standard：DIN, ANSI, GB, JIS, GOST, BSW, ASTM
  • Grade：8.8

Base Info

  • Model NO.：All metal lock nut
  • Metric Size：M6 up to M24
  • Inch Size：1,4 up to 1 Inch
  • Quality：Grade 8, 10
  • Coating：Plain, Black, Zp
  • Transport Package：Small Box, Carton, Pallet
  • Specification：DIN,ANSI,JIS,GB
  • Trademark：TS
  • Origin：China
  • HS Code：731816
  • Production Capacity：20000000 Per Month

Description

d1 s e min d2 h max
M4 7 7.66   4.2
M5 8 8.79   5.1
M6 10 11.05   6
M8 13 14.38   8
M10 17 18.9   10
M12 19 21.1   12
M14 22 24.49   14
M16 24 26.75   16
M18 27 29.56 23 18
M20 30 32.95 27.5 20
M22 32 35.03 29.5 22
M24 36 39.55 31 24
M27 41 45.02
M30 46 50.85
M33 50 55.37
M36 55 60.79
