• Model NO.：MJPT
• Pre-Insualtion Seleeve：Insulation Sleeve
• PVC Tube：Insulation
• Insulation Materials：Cable Accessories
• Insulation Tube：Insulation Tape
• Sleeve：Fiberglass Sleeving
• Fiberglass Tape：Heat Shrink Tube
• Mjpb Type Insulation Sleeve：Pre-Insulated Sleeve
• Cable Lug Mjpt：Mjpt
• Cable Lugs：Lugs
• Transport Package：Exported Carton
• Specification：MJPT
• Trademark：JMA
• Origin：China
• HS Code：8538900000
• Production Capacity：100000

Basic Info.

Model NO. MJPT Pre-Insualtion Seleeve Insulation Sleeve PVC Tube Insulation Insulation Materials Cable Accessories Insulation Tube Insulation Tape Sleeve Fiberglass Sleeving Fiberglass Tape Heat Shrink Tube Mjpb Type Insulation Sleeve Pre-Insulated Sleeve Cable Lug Mjpt Mjpt Cable Lugs Lugs Transport Package Exported Carton Specification MJPT Trademark JMA Origin China HS Code 8538900000 Production Capacity 100000

Product Description

Specifications

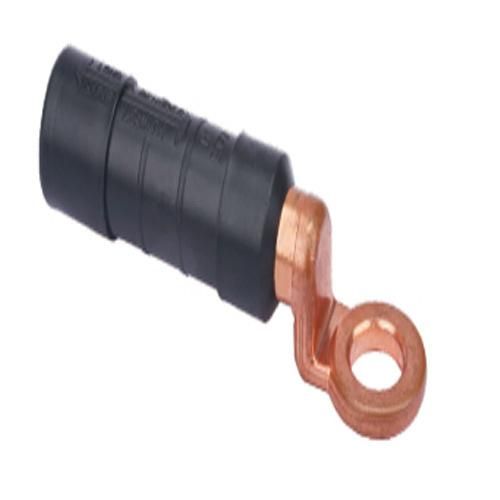

Pre-insulated sleeve
1. Type: MJPB
2. Material: AL/Copper
3. Function: To connect the insulated cable

Introduction
Pre-insulated sleeve is designed to connect the insulated cable(include ABC cable) in
aerial distribution network...It is in accordance with NF33-021. The sleeve is without
tension. And its cap can prevent the water into the barrel. It is colored differently to
distinguish the cable sizes

Marked with type, cable size, die size, inner cable length and number of crimping

Material: Aluminum alloy

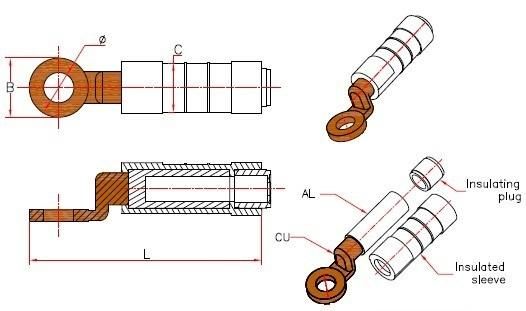

Detail specificaition

Model	C mm	B mm	∮ mm	L mm
CPTAU 16-10	16	20	10.5	73
CPTAU 25-12	20	24	13	98.5
CPTAU 35-12	20	24	13	98.5
CPTAU 50-12	20	24	13	98.5
CPTAU 54.6-12	20	24	13	98.5
CPTAU 70-12	20	24	13	98.5
CPTAU 95-12	20	24	13	98.5
CPTAU 120-12	23	30	13	125
CPTAU 150-12	23	30	13	125
CPTAU 180-12	32	35	13	145
CPTAU 240-12	32	35	13	145
