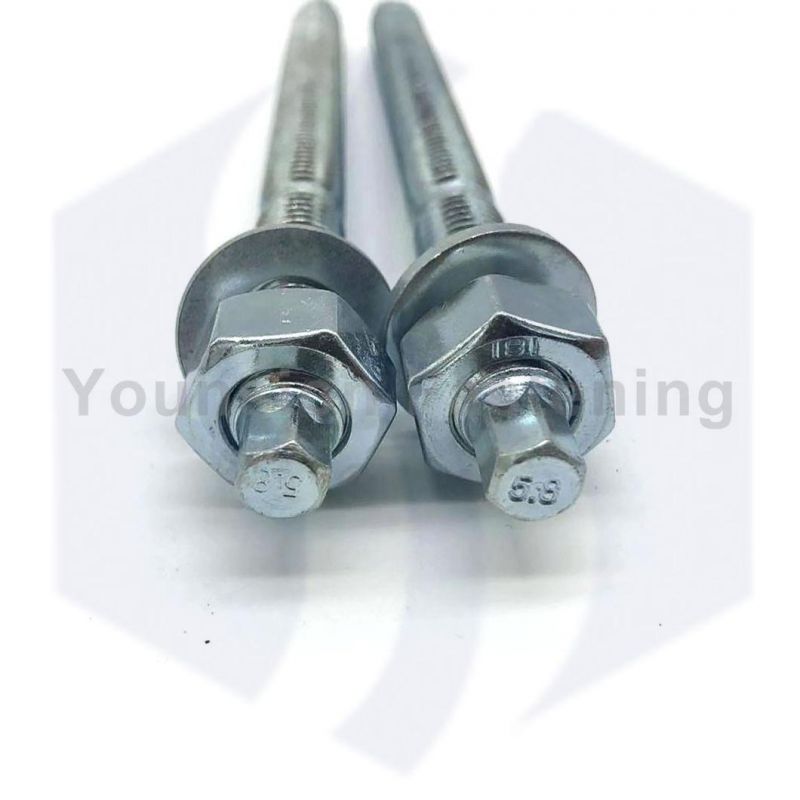

Chemical Stud Anchor Bolt with Hex Nut and Washer 5.8 Grade White Blue Zp
Younsion Fastening Industrial Co., Ltd.- Material：Carbon Steel
- Type：Hexagon Head
- Connection：Common Bolt
- Head Style：Hexagonal
- Standard：DIN, ANSI, GB, JIS, BSW, GOST
- Grade：5.6
Base Info
- Model NO.：CSA01
- Application：Machinery, Chemical Industry, Environmental, Building
- Finish：Blue-White Zinc Plated
- Transport Package：Inner Boxes, Cartons with Pallets
- Specification：M6-M30, 1,4-1-1,4
- Trademark：YS
- Origin：China
- HS Code：7318190000
- Production Capacity：1296tons,Years
Description
Basic Info.
Model NO. CSA01 Application Machinery, Chemical Industry, Environmental, Building Finish Blue-White Zinc Plated Transport Package Inner Boxes, Cartons with Pallets Specification M6-M30, 1/4-1-1/4 Trademark YS Origin China HS Code 7318190000 Production Capacity 1296tons/YearsProduct Description

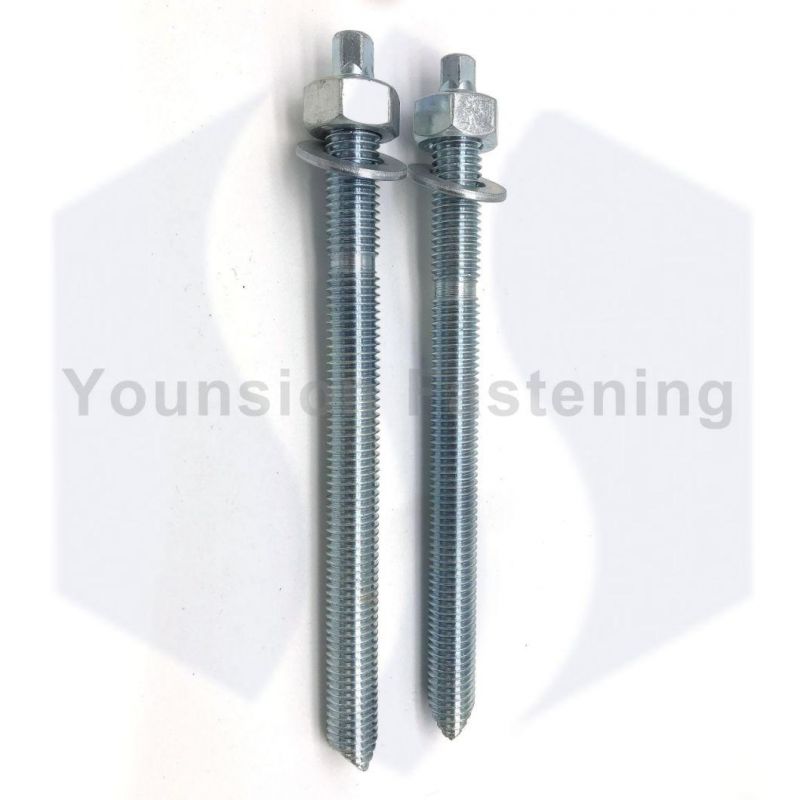

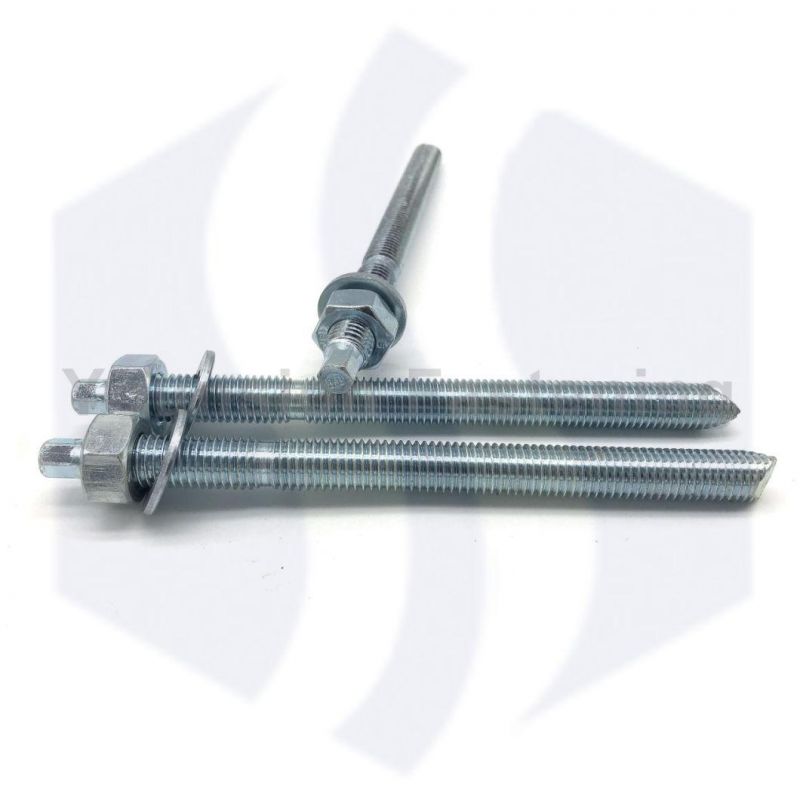

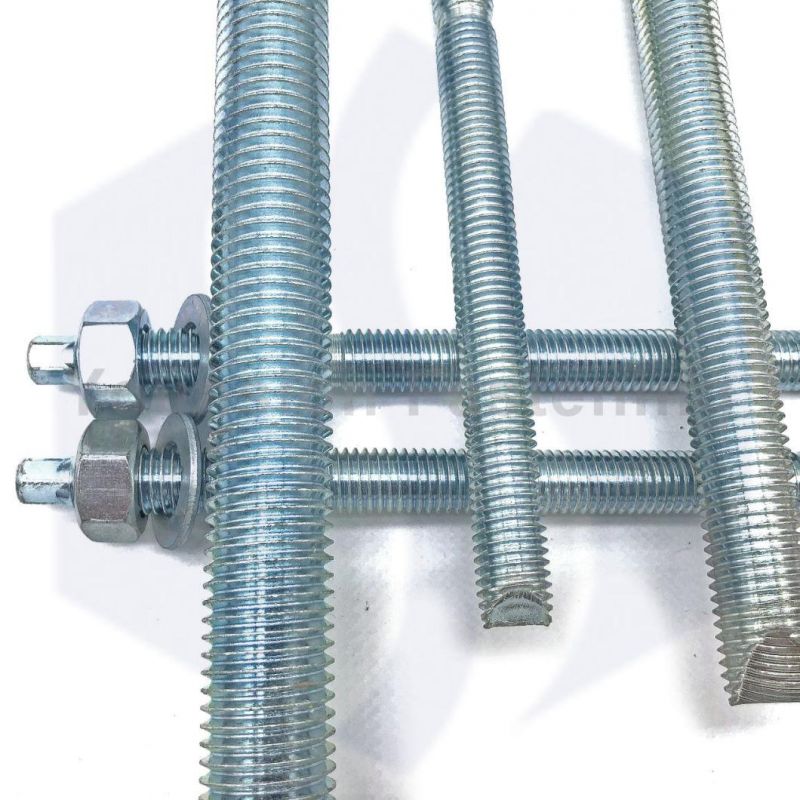

Chemical Stud AnchorDescription1, Product name: chemical stud anchor bolt, chemical anchor fastener
2, Material: carbon steel
3, Surface treatment: zinc plated
4, Size: M6-24
Specifications
1. Product name: chemical anchor, chemical stud2. Material: carbon steel, stainless steel
3. Finish treatment: white zinc plated, yellow zinc plated.
4. Size: M8-M30, 3/8'---1-1/4'

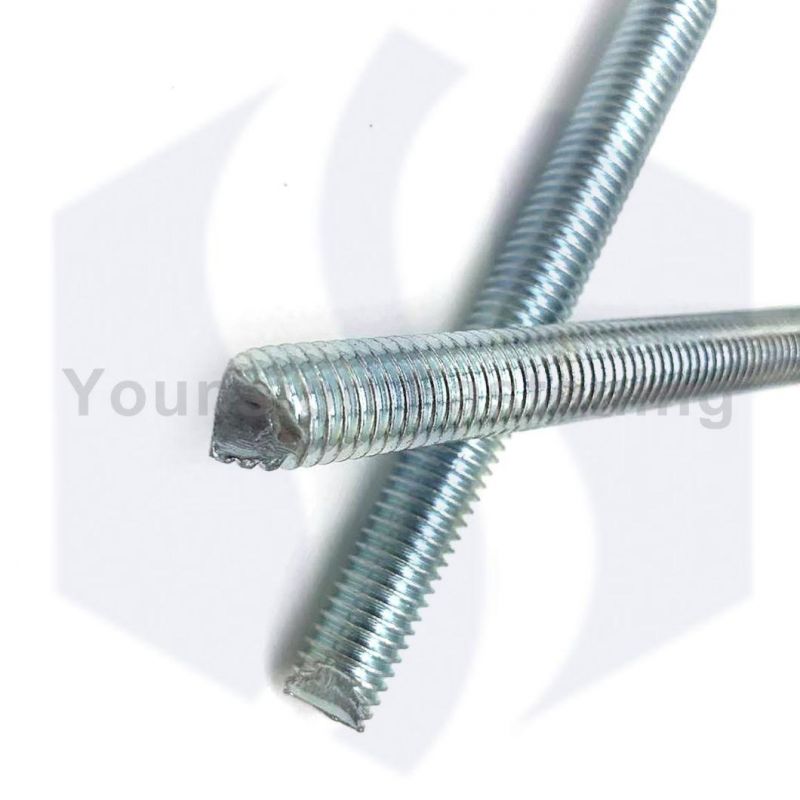

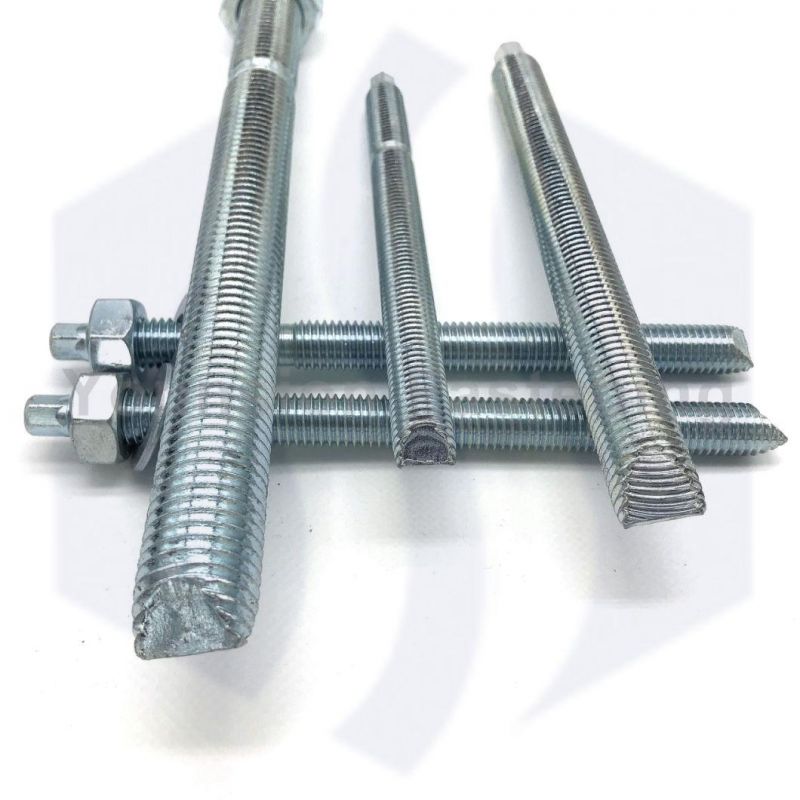

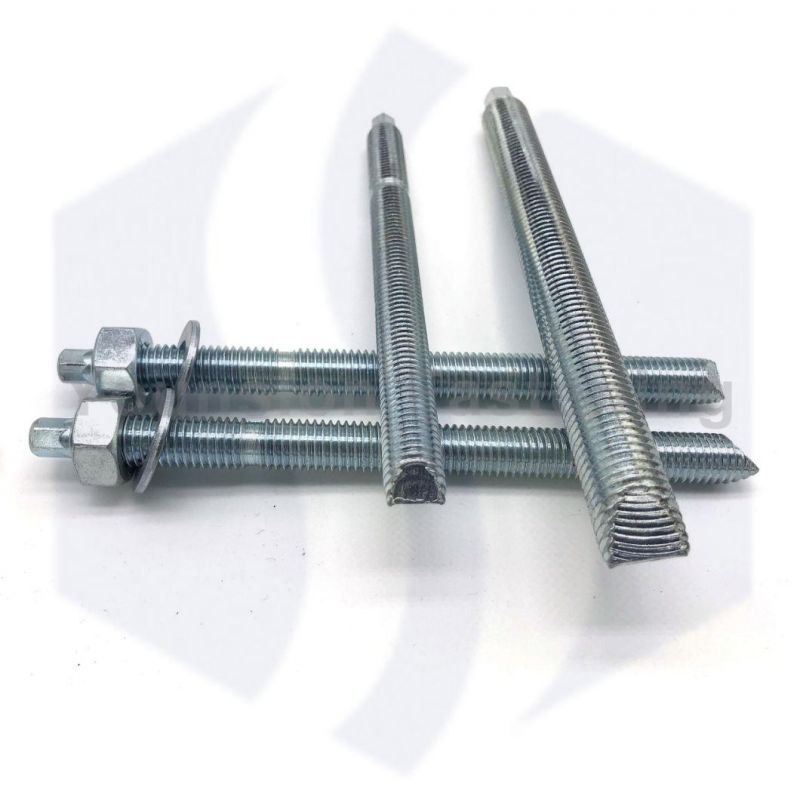

The Chemical Anchor Stud is a chisel ended anchor for use with any injection systems and glass capsule. The Chemical Anchor Stud is a chisel ended anchor for use with any injection systems and glass capsules in masonry and concrete. On installation the stud becomes chemically bonded to the base material. Notably the fixing method imposes no expansion stress on the base material, and is ideal for shock or vibratory loading and softer or low density building materials where expansion stresses would normally result in failure.
Application
Structural Steelworks, Heavy Machinery, Structural Cladding, Safety Barriers Heavy.
Technical data:
| Chemical anchors | Max.Thickness fastened | Hole size | Hole depth |
| M8X110 | 16 | 10 | 80 |
| M10X130 | 22 | 12 | 90 |
| M12X160 | 30 | 14 | 110 |
| M16X190 | 38 | 18 | 125 |
| M20X260 | 70 | 25 | 170 |
| M24X300 | 65 | 28 | 210 |
| M30X380 | 70 | 35 | 280 |
| 5/16"X4-1/2" | 3/4" | 3/8" | 3-3/8" |
| 3/8"X5" | 1" | 7/16" | 3-5/8" |
| 1/2"X6-1/4" | 1-1/4" | 9/16" | 3-9/16" |
| 5/8"X7-1/2" | 1-3/4" | 3/4" | 6" |
| 3/4"X10-1/4" | 2-3/4" | 7/8" | 7-1/2" |
| 7/8"X11-3/4" | 3-3/4" | 1" | 8-1/2" |
| 1"X11-3/4" | 2-1/2" | 1-1/8" | 8-1/2" |
| 1-1/4"X14-1/8" | 2" | 1-7/16" | 11-1/2" |

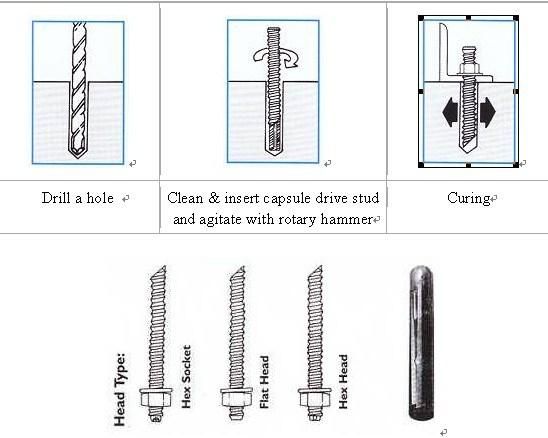

Installation
