• Model NO.：RJ-FLG
• Manufacturing Way：Forging
• Standards：ISO Nw Flange Standard
• Stainless Steel：SS304, SS316L
• Pressure：From Atmosphere to ~10-8 Torr or Mbar.
• Temperatures：~0° C and 120–180° C
• Flange Type：Kf, CF, ISO Bored Flange, Blank Flange
• Transport Package：Carton Box Inside, Wooden Cases Outside
• Specification：ISO63-500
• Trademark：RUIJIA
• Origin：Wenzhou, China
• HS Code：7307290000
• Production Capacity：200000,M

Basic Info.

Model NO. RJ-FLG Manufacturing Way Forging Standards ISO Nw Flange Standard Stainless Steel SS304, SS316L Pressure From Atmosphere to ~10-8 Torr or Mbar. Temperatures ~0° C and 120–180° C Flange Type Kf, CF, ISO Bored Flange, Blank Flange Transport Package Carton Box Inside, Wooden Cases Outside Specification ISO63-500 Trademark RUIJIA Origin Wenzhou, China HS Code 7307290000 Production Capacity 200000/M

Product Description

ISO Bored Blank Flanges points
ISO Vacuum Bored Blank Flanges are used for welding onto tubes to produce ports and connectors when manufacturing fabrications.Sealing is accomplished with a centering with a nitrile or viton o'ring squashed between a pair of ISO Flanges and pulled together using a clamp.
The ISO bored flanges are supplied in a sealed platic bag and a protective plastic cap for protection of the sealing surface. Material is 304 stainless steel, 316L stainless is upon request.
ISO Bored Blank vacuum flange specification

Product Name	ISO-MF Vacuum bored blank flange
Brand	RUIJIA
Size	ISO63-500
Material	SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material	Viton,Silocone,Buna-N seal
Standard	KF,ISO,CF Standard
Temperature	-200~800ºC
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pam³/sec or less

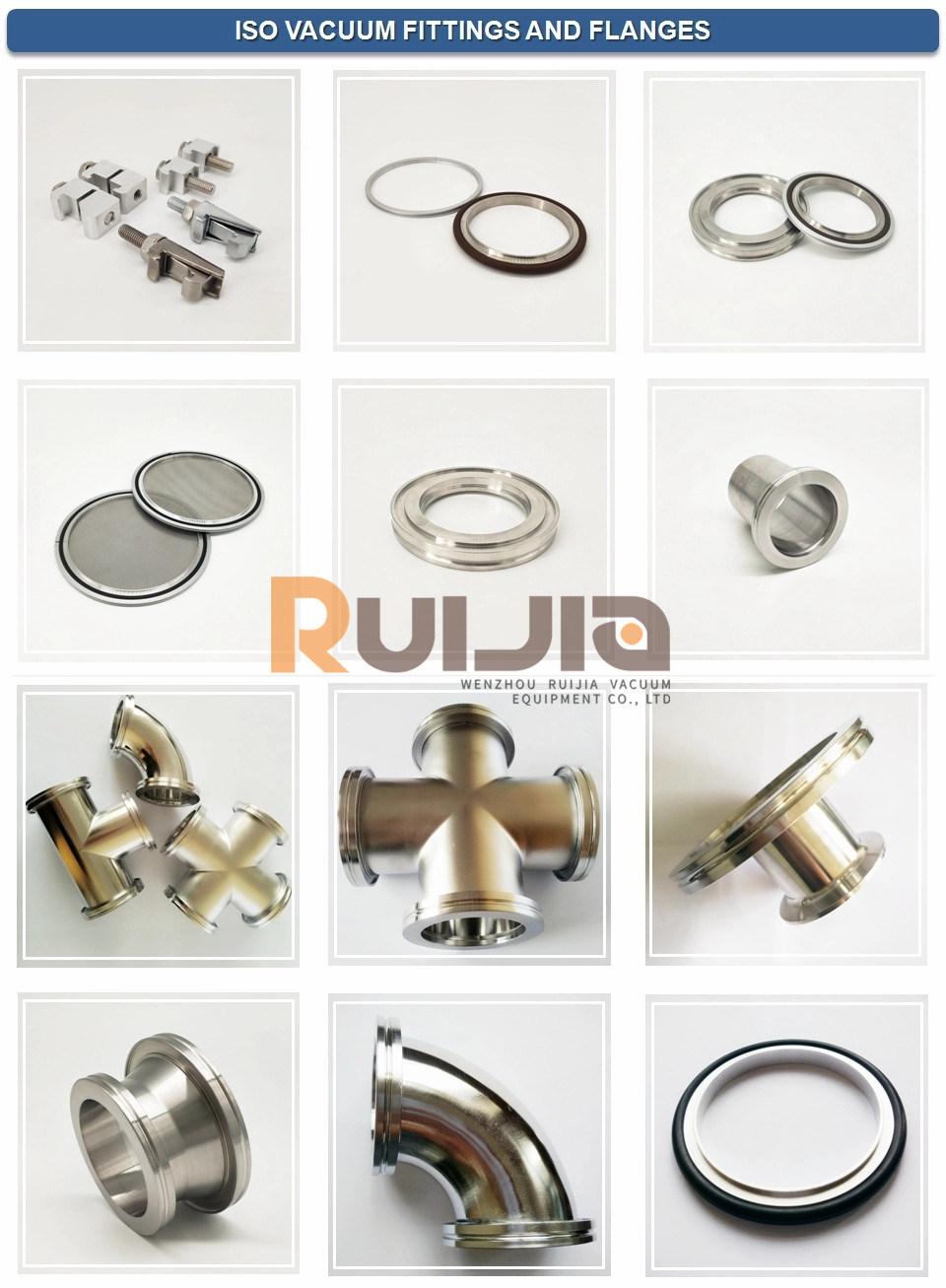

ISO Vacuum flange types

ISO blank flange,ISO bored blank, long weld stub flange,ISO half nipple(long and short)
ISO Bored flanges are manufactured to the ISO Standard and are compatible with other supplier's product.

Application
Semiconductor, LCD, LED, solar energy,space development, accelerator,flat panel display, solar energy, photoelectric communication, biotechnology, 3C electronics and food industries

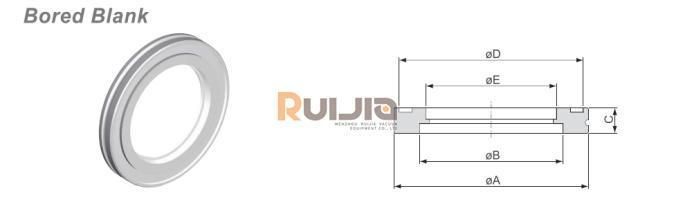

ISO Blank Flange
                                                                                                             Unit:mm

Model No.	Material	A	B	C	D	E
ISO63B63	SS304	95	70	12	90	63.7
ISO80B76	SS304	110	83	12	105	76.8
ISO100B102	SS304	130	102	12	125	102.2
ISO160B153	SS304	180	153	12	175	152.9
ISO200B204	SS304	240	213	12	235	203.7
ISO250B255	SS304	290	261	12	285	254.5
ISO320B305	SS304	370	318	17	365	305.3
ISO400B407	SS304	450	400	17	445	406.9
ISO500B509	SS304	550	501	17	545	508.8
