• Body Material：316 S.S.; 316L S.S.; 304 S.S.; 304L S.S.
• Connection Type：NPT; Bsp; Tubing
• Working Temperature：71ºC to 281ºC
• Connection Size：1,4 in. to 1,2 in. , 6 mm to 12 mm
• Working Pressure：500 Psig (34.4 Bar)
• Certificate：CE; ABS; ISO9001; ISO 14001; ISO 45001.
• Transport Package：Carton; Wooden Case
• Trademark：Hikelok
• Origin：China
• HS Code：7307290000
• Production Capacity：5000 PCS Per Month

Basic Info.

Body Material 316 S.S.; 316L S.S.; 304 S.S.; 304L S.S. Connection Type NPT; Bsp; Tubing Working Temperature 71ºC to 281ºC Connection Size 1/4 in. to 1/2 in. / 6 mm to 12 mm Working Pressure 500 Psig (34.4 Bar) Certificate CE; ABS; ISO9001; ISO 14001; ISO 45001. Transport Package Carton; Wooden Case Trademark Hikelok Origin China HS Code 7307290000 Production Capacity 5000 PCS Per Month

Product Description

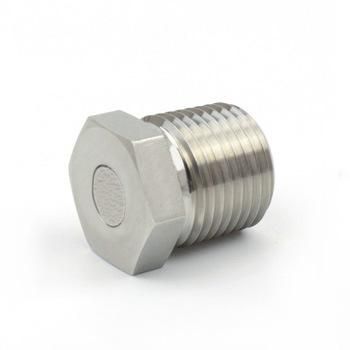

Swagelok Type Stainless Steel 316 Fusible Plug Fitting



Features:
 Eutectic alloy is filled in the stainless plug.

Fusible fittings function by the yielding or melting of the fuse alloy.

Fusible fittings are thermally operated but not reusable pressure relief devices.

Fusible fittings do not protect against overpressure from improper charging practices.

Maximum operating pressure: Tested to 500 psi (3.4 MPa)

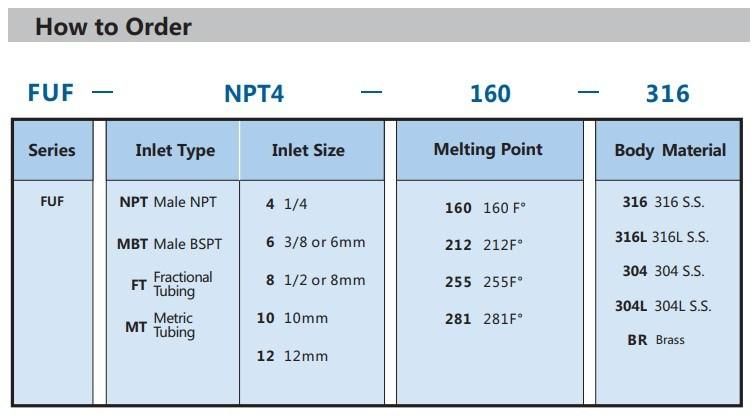

Temperature rating from 160°F (71°C) to 281°F (138°C) with 4 temperature ranges.

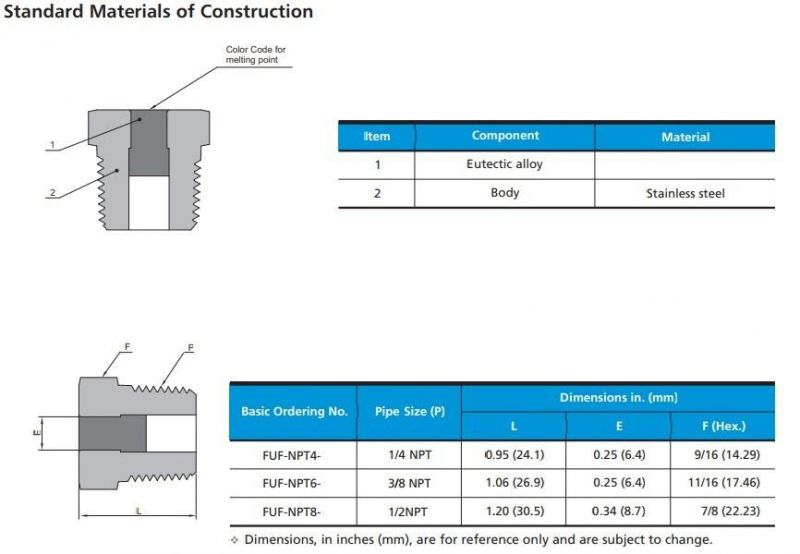

Two types of fusible fittings: Pipe plug and tube adapters with 316 stainless steel body.



 Company Introduce:




Introduction of Hikelok® Brand1.Established time: in 2011
2.Experience/Advantage:focused on precision fluid fittings and valves for more than 10 years.We enjoy a good reputation in the foreign business .3.Product's style is similar to well-known brand Swagelok ®and Parker ®.
4.Products introduction:the main products of hikelok include ball valves,needle valves,instrument manifolds,bellows valves,check valves,twin ferrules series tube fittings,instrument pipe fittings,weld fittings and other kinds of instrumentation valves and fittings.5.Body materials: stainless steel,alloy steel, brass,special alloy and carbon steel
6.Standard products:ANSI,ASME,ASTM,API,MSS,ISO,EN,GB,JB,HG ect.
7.Application:widely used in power generation,petroleum,petrochemical,natural gas, semiconductor,laboratory,shipbuilding, steel,chemical industry and other fields8.Certificate:ISO9001 ,2015;ISO14001;ISO45001;ABS;CE


Certifications:

ISO9001 ,2015;ISO14001;ISO45001;ABS;CE


Our Services:
 From quote to delivery, we can provide the detailed support you need:

1. CAD drawing

2. P&ID

3. Component selection

4. Bill of material

5. Professional services such as bending and welding

6. Testing to guarantee the system

7. Professional packaging and delivery

8. Give you solution within 24 hours
