ANSI B16.5 Raised Face Slip on Stainless Steel Pipe Flanges

Shanxi Solid Industrial Co., Ltd.
  • Standard：ANSI, DIN, GB, JIS, GOST, BSW
  • Type：Welding Flange
  • Material：Stainless Steel
  • Structure：Round
  • Connection：Flanged
  • Sealing Surface：RF

Base Info

  • Model NO.：Flange
  • Manufacturing Way：Casting
  • Transport Package：Cases or Pallets
  • Specification：3,8"-60"
  • Trademark：SOLID
  • Origin：Shanxi, China
  • Production Capacity：100000 Piece, Month

Description

Size

1/2"-80"

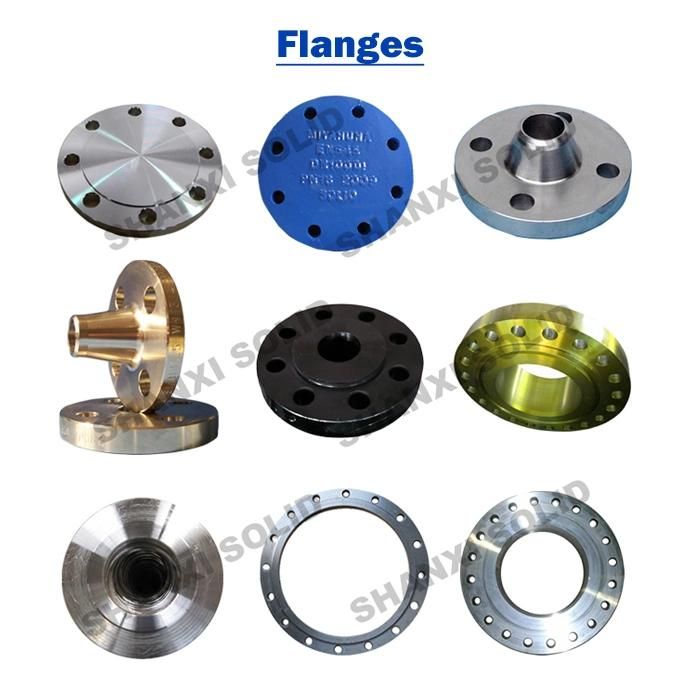

Type

Weld Neck,  Slip-On, Blind, Socket Weld, Lap Joint, Threaded, Orifice Flange,

Swivel Flange,  Spectacle Blind,Etc.

Standard

ANSI, ASME ,MSS, API,  DIN, JIS, BS. AWWA and GB

Pressure

ANSI 150LBS-2500LBS,

DIN PN6-PN100

BS PN0.25-PN25 PN2.0-PN42.0

ISO7005-1,PN2.5-PN40

Materials

ASTM:SA105N/A105

Low Temperature Carbon Steel: ASTM SA350 LF2

High Strength Steel: ASTM SA694 F42/46/52/56/60/65

ASTM A182 F304/304L/316/316LASTM A182 F1/F5/F9/F11/F22/F91/Etc.ASTM A182 F51/F53/F55/F60 Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/80090/10,70/30

Materials shall be identified in the following ways:
(a) Cast flanges shall bemarkedwith theASTMspeci-fication, 1 grade identification symbol (letters and num-bers), and the melt number or melt identification.
(b) Plate flanges and forged flanges shall be marked with the ASTM specification 1 number and grade identi-fication symbol.
(c) Amanufacturermay supplement thesemandatory material markings with his trade designation for the material grade, but confusion of symbols shall be avoided.
(d) For flanges manufactured from material that meets the requirements for more than one specification or gradeof a specification listed inTable 1, seepara. 4.2.8.

ANSI B16.5 Raised Face Slip on Stainless Steel Pipe Flanges


ANSI B16.5 Raised Face Slip on Stainless Steel Pipe Flanges
ANSI B16.5 Raised Face Slip on Stainless Steel Pipe Flanges
ANSI B16.5 Raised Face Slip on Stainless Steel Pipe Flanges
ANSI B16.5 Raised Face Slip on Stainless Steel Pipe Flanges

FAQ

1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.

2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.

3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.

4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.

5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.

6. Which price terms could accepted?
A: FOB,CIF all acceptable.
