• Body Materials：316 S.S.,316L S.S.,304 S.S.,304L S.S.
• Tube O.D：1,16 to 11,2 in , 2 mm to 38mm
• Thread：NPT;BSPP; BSPT; ISO
• Cleaning Process：Standard Cleaning and Packaging (Cp-01)
• Certificate：ISO9001;ISO14001&45001;ABS;CE
• Transport Package：Carton; Wooden Case
• Trademark：Hikelok
• Origin：China
• HS Code：7307290000
• Production Capacity：5000 PCS Per Month

Basic Info.

Body Materials 316 S.S.,316L S.S.,304 S.S.,304L S.S. Tube O.D 1/16 to 11/2 in , 2 mm to 38mm Thread NPT;BSPP; BSPT; ISO Cleaning Process Standard Cleaning and Packaging (Cp-01) Certificate ISO9001;ISO14001&45001;ABS;CE Transport Package Carton; Wooden Case Trademark Hikelok Origin China HS Code 7307290000 Production Capacity 5000 PCS Per Month

Product Description

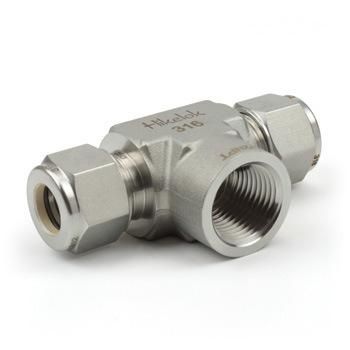

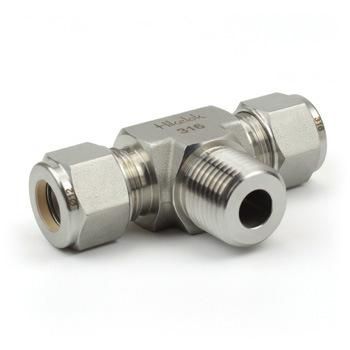

Stainless Steel Double Ferrules Compression Tube Fittings Male Female Branch Tee
Performance:
 Hydraulic proof pressure test (1.5 times the maximum permissible working pressure): no leakage
 Dismantling and reassembly test (dismantle 10 times): no leakage
 Minimum hydrostatic pressure test (4 times the maximum permissible ambient pressure rating): no leakage
 Vacuum test (1 × 10−4 mbar or greater): the leak rate less than 1 × 10−8
 Maximum static gas pressure test (with nitrogen gas to 150% of pressure rating): no visible bubbles
 Hydraulic impulse and vibration test (the pressure impulses at between 0.5 Hz and 1.7 Hz and the vibration at between 23 Hz and 47 Hz): no leakage
 Thermal cycle test (ambient to +80 °C and then to -25 °C with a hydrostatic pressure): no evidence of leakage
 Pneumatic pressure vibration test (The frequency of vibration shall be set at 45 Hz and complete 20 × 106 cycles): without failure
 Fire test (in accordance with BS ISO 19921): no leakage
 Corrosion resistance test (the duration of exposure at least 168 h): no visible evidence of corrosion
 Deep water submersion test (equivalent to 3048 m of sea water): no helium detected

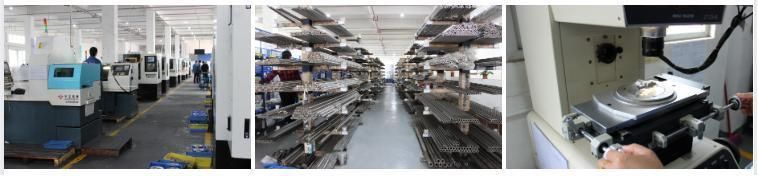

Company Introduce:




Introduction of Hikelok® Brand1.Established time: in 2011

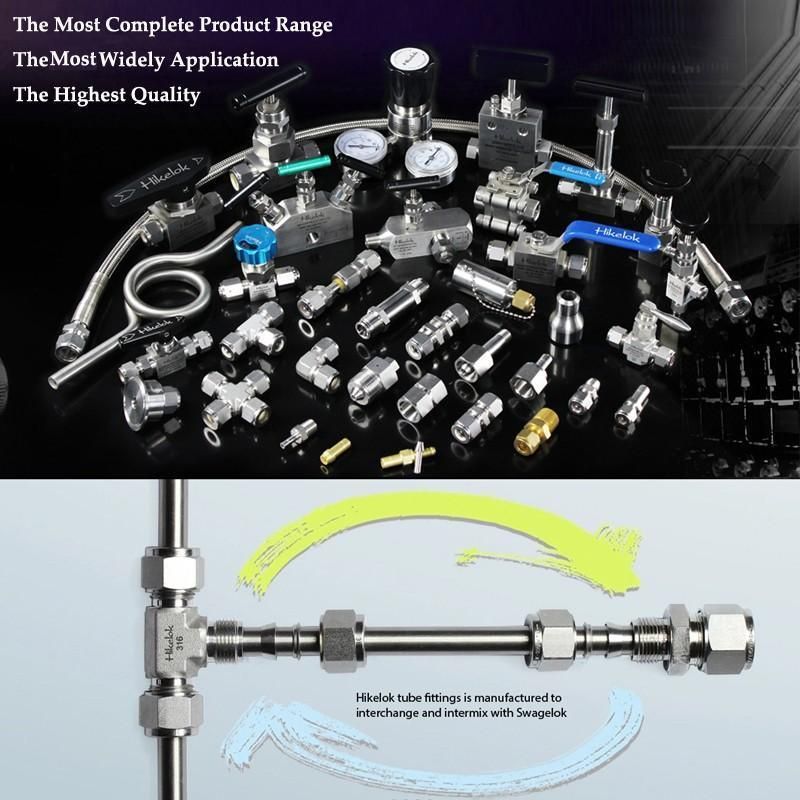

2.Experience/Advantage:focused on precision fluid fittings and valves for more than 10 years.We enjoy a good reputation in the foreign business .3.Product's style is similar to well-known brand Swagelok ®and Parker ®.

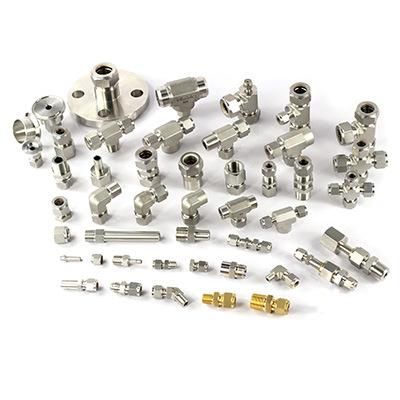

4.Products introduction:the main products of hikelok include ball valves,needle valves,instrument manifolds,bellows valves,check valves,twin ferrules series tube fittings,instrument pipe fittings,weld fittings and other kinds of instrumentation valves and fittings.5.Body materials: stainless steel,alloy steel, brass,special alloy and carbon steel
6.Standard products:ANSI,ASME,ASTM,API,MSS,ISO,EN,GB,JB,HG ect.
7.Application:widely used in power generation,petroleum,petrochemical,natural gas, semiconductor,laboratory,shipbuilding, steel,chemical industry and other fields8.Certificate:ISO9001 ,2015;ISO14001;ISO45001;ABS;CE



Certifications:

ISO9001 ,2015;ISO14001;ISO45001;ABS;CE


Our Services:
 From quote to delivery, we can provide the detailed support you need:

1. CAD drawing

2. P&ID

3. Component selection

4. Bill of material

5. Professional services such as bending and welding

6. Testing to guarantee the system

7. Professional packaging and delivery

8. Give you solution within 24 hours
