PC/Pl Series Nickel-Plated Mini Pneumatic Push in Combination & Joint Fittings
Ningbo Hi-Tech Smart Machinery Co., Ltd.- Standard：DIN, ANSI, GB, JIS, BSW
- Material：Brass
- Connection：Male
- Surface Treatment：Nickel-Plated
- Head Type：Hexagon
- Tube Sizes：3mm to 6mm
Base Info
- Model NO.：PC
- Thread：M3 to 1,8
- Fitting Material：Brass
- Plastic：PP
- Transport Package：PP Bag + Box + Carton
- Specification：CE
- Trademark：Smartsolu
- Origin：China
- HS Code：39174000
- Production Capacity：500000000000
Description
Basic Info.
Model NO. PC Thread M3 to 1/8 Fitting Material Brass Plastic PP Transport Package PP Bag + Box + Carton Specification CE Trademark Smartsolu Origin China HS Code 39174000 Production Capacity 500000000000Product Description
Application:
*Mini one touch type pipe connection tool for air pressure piping in limited spaces
*Various uses according to the user's environment.
Features:
*One action can insert the tube to easy connection and release.
*Volume is smaller than the regular type,but same flux is obtained.
*Treated with electroless nickel coating on the surfact for excellent tolerance to corrosion.
*Oval sleeve is designed to allow easy release in the limited space.
*The screw section has O-ring,or T eflon coated.
*Miniaturized fitting for small devices and piping in limited spaces.
model

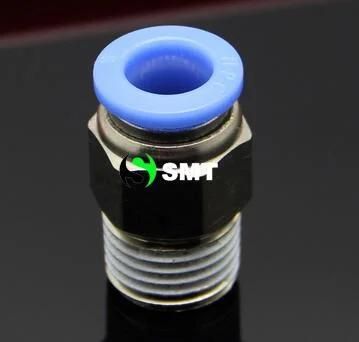

PC03-M3 | PC04-M5 | PC06-M6 |
| PC03-M5 | PC04-M6 | PC06-01 |
| PC03-M6 | PC04-01 | |
| PC04-N3 | PC06-M5 |

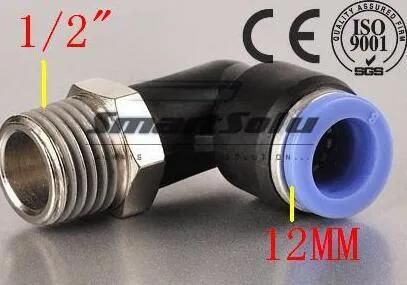

PL03-M3 | PL04-M5 | PL06-M6 |
| PL03-M5 | PL04-M6 | PL06-01 |
| PL03-M6 | PL04-01 | |
| PL04-N3 | PL06-M5 |
